Forged ringlock system used construction scaffolding

FOB Reference Price:Get Latest Price
$6.00 - $18.00 / Piece | 50 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
YAHUA
Model Number:
YH-RS202
Material:
Q235/Q345 Steel
Surface Treatment:
Hot Dip Galvanized/Painted
Diameter:
48.3mm*3.2mm
Type:
Scaffolding Ringlock System
Application:
For building construction jobs
Certificates:
SGS
Length:
0.5-3m
Life Span:
5-8years
Categories:
Standards/Ledgers/Bracings
OEM:
Yes
Supply Ability
Supply Ability:
2000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
ringlock system used scaffolding:
Packaged in Pallet
Port
Shanghai
Lead Time :
Shipped in 7 days after payment

Forged ringlock system used construction scaffolding



Product Description

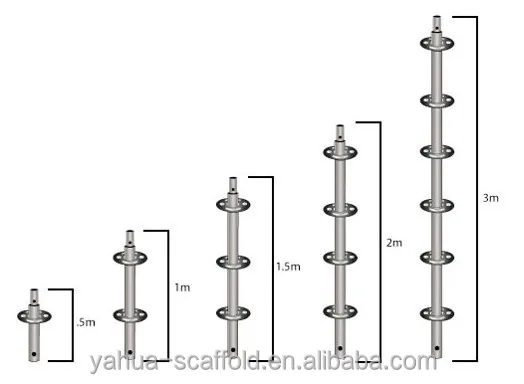

1. Standard (Vertical)
MaterialQ345
Size48.3*3.2mm
RinglockQ235B steel; 8mm or 10mm thickness
Surface FinishingHDG
Processing FlowCutting off, welding, shaping, galvanizing, packaging
Function*main stressed part of scaffold;
*adding inner pipe fittings on the upper end to increase height of scaffold;



Item CodeLength(m)Length(inch)Weight(kg)Weight(lbs)
YH-RS0500.5m1′8″3.19 7.01
YH-RS1001m3′3″5.66 12.45
YH-RS1501.5m4′11″8.07 17.75
YH-RS2002m6′7″10.45 23.00
YH-RS2502.5m8′2″12.87 28.32
YH-RS3003m9′10″15.29 33.64
YH-RS4004m13′1″20.11 42.24
Ringlock scaffolding standard.jpg

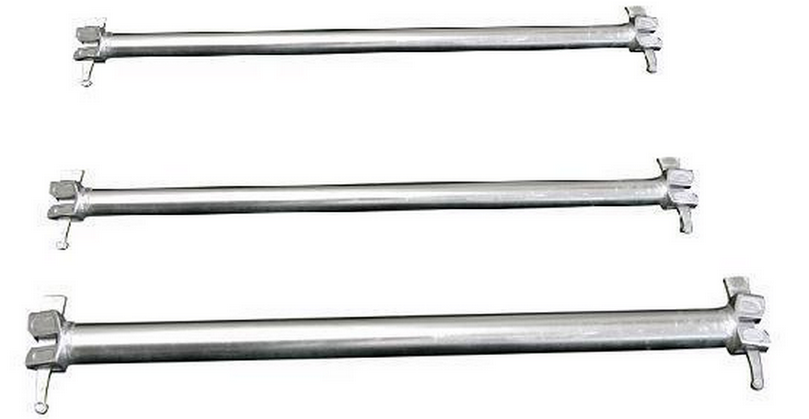

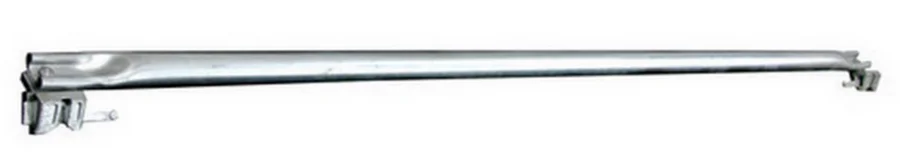

2. Ledgers (Horizontal): 48.3*3.0mm
MaterialQ235
Size48.3*3mm
Surface FinishingHDG
Processing FlowCutting off, welding, shaping, galvanizing, packaging
FunctionConnecting vertical poles to fix the whole scaffold, keeping it from shaking



Item CodeLength(m)Length(inch)Weight(kg)Weight(lbs)
YH-RL0650.65M2'2"3.146.91
YH-RL0880.88M2'10"3.938.65
YH-RL0920.92M3'4.099.01
YH-RL1071.07M3'6"4.6810.29
YH-RL1151.15M3'10"4.9510.88
YH-RL1571.57M5'2"6.4714.23
YH-RL1831.83M6'7.416.28
YH-RL2132.13M7'8.4918.68
YH-RL2442.44M8'9.6121.15
YH-RL3053.05M10'11.8326.02

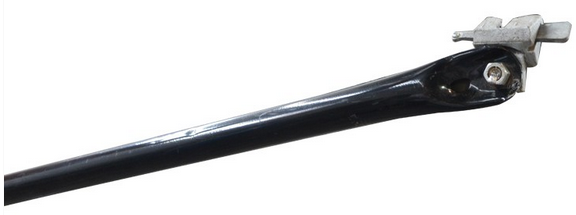

3. Brace (Diagonal): 48.3*2.5mm

MaterialQ235
Size48.3*2.5mm
Surface FinishingHDG or powder coated
Processing FlowCutting off, both ends flattening, slotting, assembling, galvanizing, packaging
FunctionConnecting vertical poles and ledgers to make the scaffold more stable



Item CodeBay Length(M)Bay Length(inch)Brace Length(M)Weigth(KG)Weigth(lbs)
YH-RB0650.65M2'2"2.07M7.3416.16
YH-RB0880.88M2'10"2.15M7.9917.58
YH-RB0920.92M3'2.17M8.3118.27
YH-RB1071.07M3'6"2.23M8.418.49
YH-RB1151.15M3'10"2.26M8.5318.77
YH-RB1571.57M5'2"2.48M9.2320.31
YH-RB1831.83M6'2.64M9.7221.38
YH-RB2132.13M7'2.85M10.3122.69
YH-RB2442.44M8'3.07M11.0224.24
YH-RB3053.05M10'3.56M12.1526.73


4, Steel Plank:  241mm width;  67.5mm height;   1.8mm thickness
MaterialQ235
Surface FinishingHDG
Processing FlowUncoiling, cutting, grooving, punching and folding, welding
FunctionFor supporting constructors to operate at heights



Length(m)Length(inch)Weight(kg)Weight(lbs)
1.15m3′10″10.49 23.07
1.57m5′2″13.54 29.80
2.13m7′17.64 38.80
3.05m10′24.34 53.56
steel plank2.jpg5, Lattice girder



Length(m)Length(inch)Weight(kg)Weight(lbs)
5.17m1′7″70.47115.03
6.14m20′2″82.63181.79
7.71m25′3″103.76228.26
6, Side Brackets



Length(m)Length(inch)Weight(kg)Weight(lbs)
0.65m2′2″6.6114.54
0.88m2′10″8.6218.96

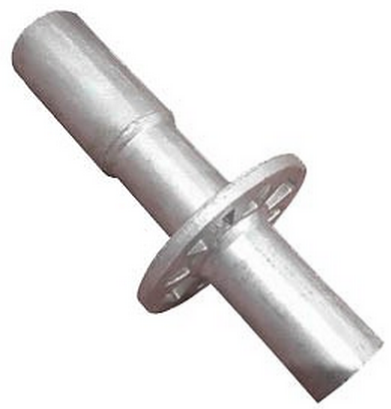

7, Base Collar

Length(m)Length(inch)Weight(kg)Weight(lbs)
0.24m9.4″1.533.37

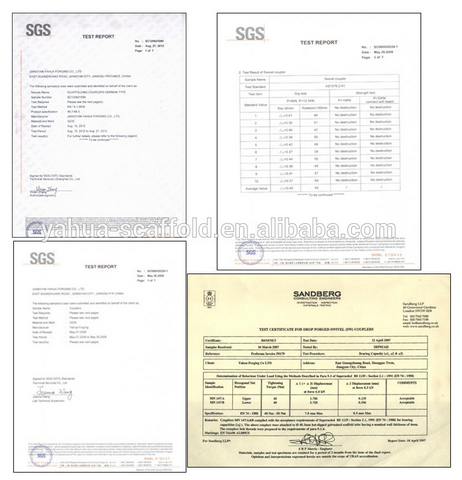

Certifications

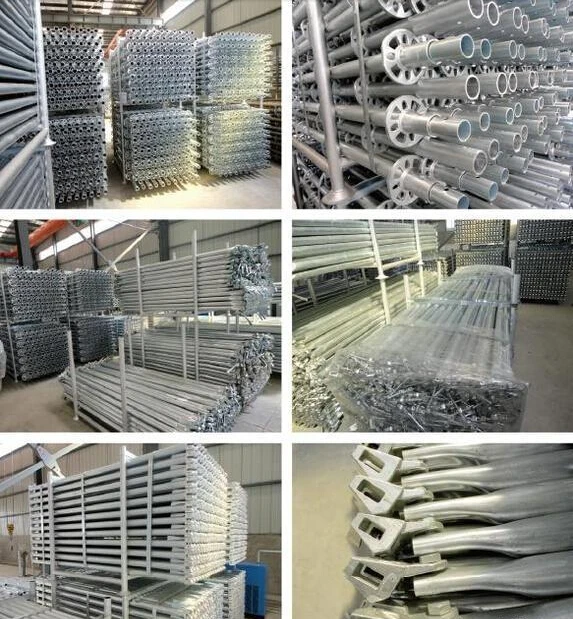

Packaging & Shipping



Port: Shanghai
Payment Terms: L/C, T/T, Western Union, MoneyGram

Packaging Details:  Packaged in Pallet

Ringlock scaffolding standard-4.png



Company Information



1, Covers an area of 21,000 square meters and has 130 staff, combining research and production.

2, Expert in scaffolding clamps for 16 years, 60% products are sold well in Europe, America.

    ♦ Our partners: DSS (Direct Scaffolding Supplier); ULMA

3, Our products include: double clamp, swivel clamp, putlog clamp, girder clamp, border clamp,   sleeve clap, joint pin, rapid clamp, half clamp, ringlock clamp and screw base jack &                       accessories.

    ♦ All the products are produced under BS1139 and EN74.

4, Raw materials are brought from SHAGANG Group Co.,Ltd.
5, We produce 100,000 pcs per week and export 40 full container loads each month.
